ZERUST® Replaces Desiccant-Barrier Packaging for Corrosion Control and Cost Reduction

  • Export Shipment
  • Inventory Storage
  • Long Term Storage
  • Work In Progress

Who?

Crating company responsible for corrosion-free cargo

What?

Corrosion management in shipment and storage beyond one year

Why?

Replace the previous desiccant-barrier method to lower costs and increase protection

How?

ZERUST® ICT®510-C Film and Vapor Capsules for long-term protection during overseas shipping

Corrosion Control
corrosion control
Corrosion Control
Corrosion Control

Problem

An international crating company needed to find a better corrosion control solution than their current method of desiccants with sealed barrier packaging. Finding an effective solution was crucial to the company since their worldwide shipments pass through temperature and humidity swings that can accelerate corrosion. The company was unhappy with the desiccant-barrier packaging method because the desiccants became saturated and needed to be replaced at least every six months, increasing material and labor costs. Also, the barrier packaging frequently became punctured, and moisture rapidly filled the desiccants, making them ineffective. Once the desiccants became saturated, they became a source of corrosion by emitting moisture back into the package.

Corrosion Control Solution

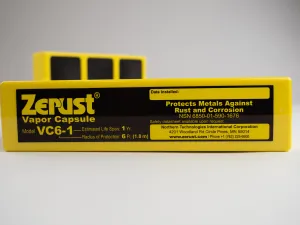

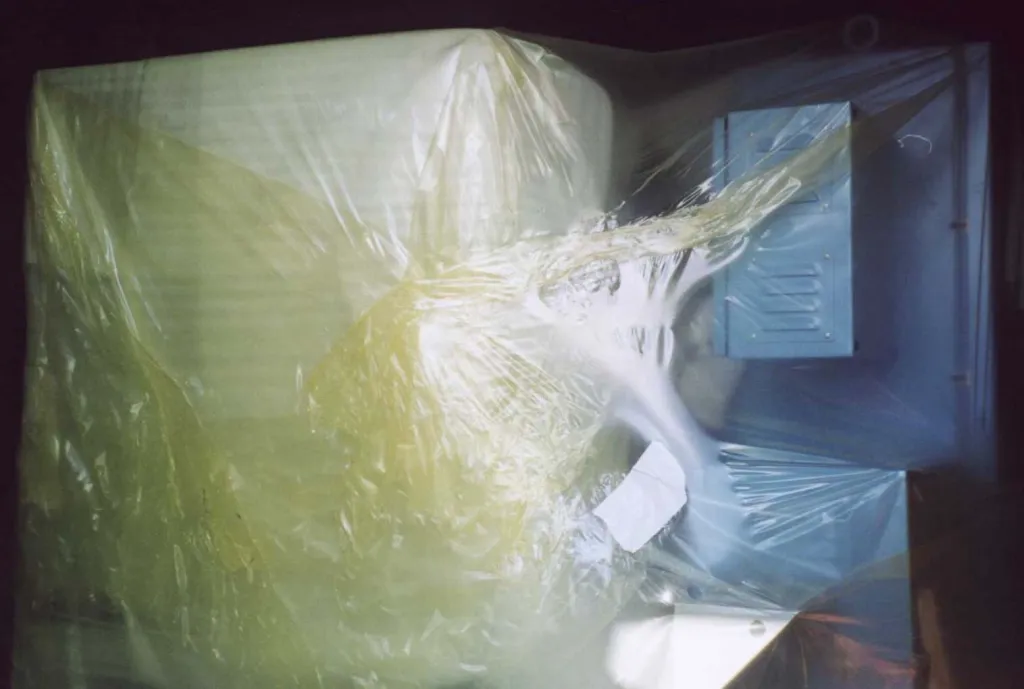

ZERUST® helped them implement a corrosion control system for five 40′ cargo containers, fully loaded with conveyors, controllers, and other factory equipment, to be shipped from the East Coast to the Middle East. The machinery was wrapped in ZERUST® ICT®510-C Ferrous Film, then heat-sealed and heat-shrunk to provide a tight enclosure. Additional multimetal corrosion protection was provided to the inside of each piece of equipment by ZERUST® VC6-1 Vapor Capsules. Before shipping, they were stored crated outside for over one year, waiting to be loaded. The ZERUST® system was very effective; all machines arrived at their final destination free of corrosion. Comparing ZERUST® to the desiccant-barrier packaging method, the company found that ZERUST® packaging was more effective and reduced costs by 57%.

Conveyors protected from rust & corrosion
For Years


Controllers protected from rust & corrosion
For Years


Customer Satisfaction
100%

Results

The customer has been extremely happy with their corrosion-free results and reduced costs by 57% over desiccant-barrier packaging methods. Contact a ZERUST® Representative for a comprehensive corrosion management solution most effective for your metal assets.

Corrosion Control

ZERUST® VCI Film and Vapor Capsules completely controlled corrosion and reduced costs by 57% over desiccant-barrier packaging methods.
Related Products

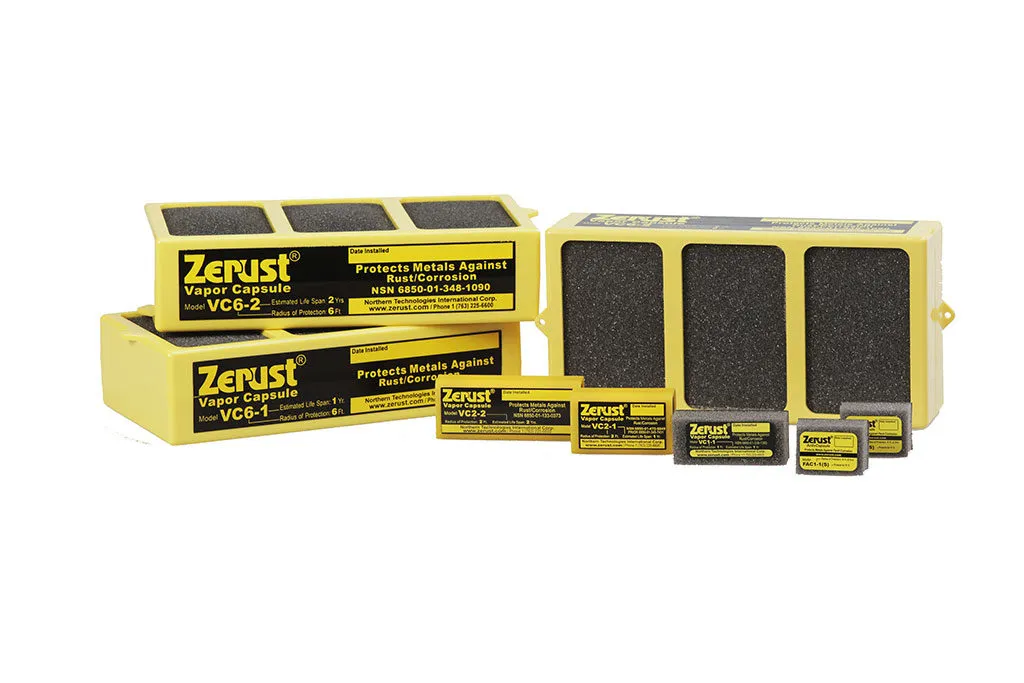

Overview of ZERUST Vapor Capsule series for diverse applications

Vapor Capsules are portable VCI emitter diffusers containing proven ZERUST® Vapor Corrosion Inhibitors (VCI). They protect metals in hard-to-reach areas of control panels, electrical cabinets, or other enclosed spaces from corrosion, even when they are in operation. Additionally, use these VCI emitter diffusers as a supplement to other ZERUST® VCI packaging products for added protection.

Engine components protected by ZERUST VCI sheeting in dunnage

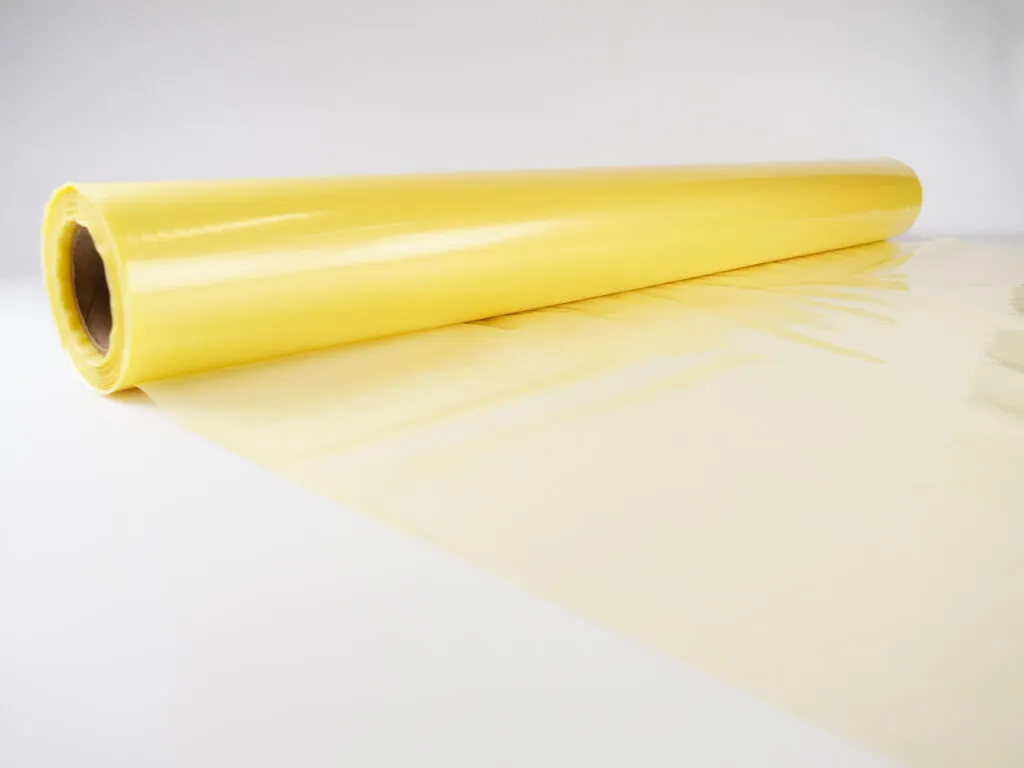

ICT®510-C Ferrous VCI Film provides cost-effective and targeted protection against rust damage for ferrous metals, such as steel, iron, and cast iron in shipping, storage, and work-in-progress.

Engine packaged in ZERUST ICT510-C Multimetal VCI Film

ICT®510-C VCI Multimetal Film provides cost-effective and versatile protection against rust and corrosion damage for ferrous and non-ferrous metals in shipping, storage, and work-in-progress.

Copper wiring in ZERUST Non-Ferrous VCI Film

ICT®510-C Non-ferrous VCI Film provides cost-effective and versatile protection against corrosion damage for non-ferrous metals such as aluminum, copper, brass, and bronze, in shipping, storage, and work-in-progress.

Metal coil protected with ICT510-SM for long-term preservation

ICT®510-SM Stretch VCI Film is a high-quality cast packaging film that wraps pallet loads, bundles, large items, and irregularly shaped metal objects during storage and shipping. ideal for use with machine-stretch applications, and smaller rolls are also available for hand-stretch applications.

Assortment of ZERUST ICT510-C corrosion inhibitor bags for various metal types

ICT® VCI Poly Bags provide convenient and proven protection against corrosion damage for metals in shipping and storage. In addition, they are available in ferrous, non-ferrous, anti-tarnish, and multimetal protection types and various zipper, flat, and gusseted sizes.
