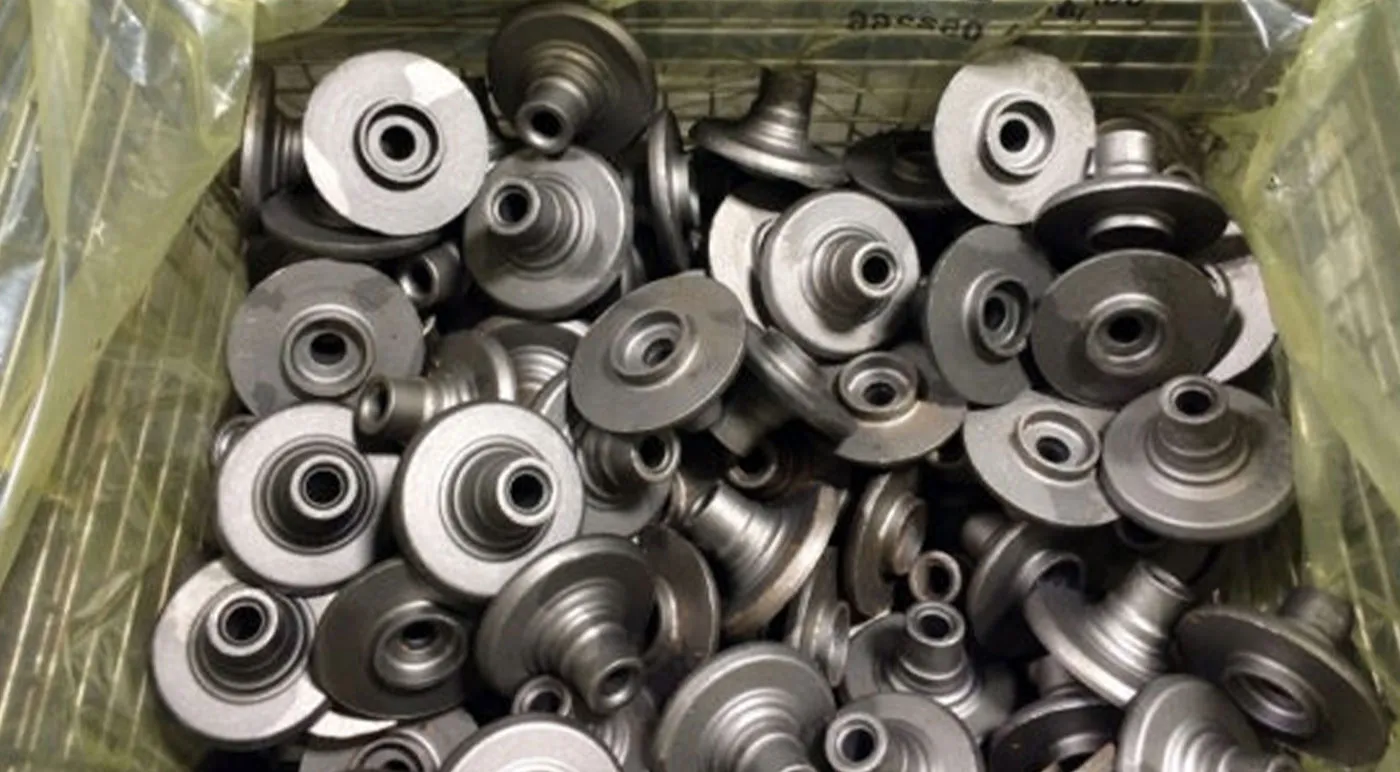

To prevent rust on cast iron parts before assembly, corrosion protection must be applied immediately after machining, washing, or surface preparation. Freshly exposed cast iron is highly reactive, and even short indoor holding periods can lead to surface oxidation if moisture, humidity, or residual fluids are present.
ZERUST® offers multiple short-term corrosion protection solutions specifically designed to protect cast iron parts during staging, work-in-process storage, and pre-assembly handling. These solutions help maintain surface quality while minimizing additional labor or rework before parts move into production.
Use Temporary Rust Preventative Liquids for Short-Term Protection
One of the most common ways to prevent rust on cast iron parts before assembly is by applying temporary rust preventative liquids. These products form a thin protective film that shields metal surfaces from oxygen and moisture during indoor storage.
Depending on process needs, ZERUST® provides:
- Water-based rust inhibitors for clean, low-residue protection after washing
- Solvent-based rust preventative oils for fast-drying, easily removable films
- Grease-based coatings for heavier protection when parts are handled less frequently
Selecting the correct formulation allows manufacturers to balance protection duration, cleanliness requirements, and ease of removal before assembly.
Learn more about ZERUST® rust preventative liquids and removers
For deeper technical details, product comparisons, and application guidance, explore the ZERUST® Corrosion Inhibitor Liquids, Additives, and Rust Removers Brochure.
Consider VCI Protection to Prevent Rust on Cast Iron Parts Before Assembly
In applications where applying and removing oils adds unnecessary process steps, VCI technology offers an alternative way to prevent rust on cast iron parts before assembly.
ZERUST® VCI Packaging releases corrosion-inhibiting molecules that protect metal surfaces within an enclosed space without leaving an oily residue.
Because no coating is applied, parts can move directly from storage into assembly, helping reduce cleaning time, labor costs, and the risk of contamination on mating surfaces.
Control Indoor Storage Conditions to Prevent Rust on Cast Iron Parts Before Assembly
Even with the right corrosion protection in place, environmental control plays a key role in preventing rust on cast iron parts before assembly. Stable indoor temperatures, controlled humidity levels, and limited air movement help extend protection performance.
Best practices include:
- Storing parts in clean, dry indoor environments
- Avoiding temperature swings that cause condensation
- Minimizing unnecessary handling before assembly
Match the Solution to Your Assembly Process
The best approach to prevent rust on cast iron parts before assembly depends on storage duration, part geometry, surface finish, and downstream manufacturing steps. ZERUST® provides process-specific corrosion protection solutions that help keep cast iron components clean, protected, and assembly-ready.
For assistance selecting the most effective option for your operation, you can contact ZERUST®/EXCOR® to speak with a technical service representative.
Get expert help selecting the right corrosion protection solution
Every assembly process is different. Contact ZERUST® to speak with a technical service representative who can help you choose the most effective corrosion protection strategy for your cast iron parts and production workflow.
Axxatec™ 30C is a water-based rust Inhibitor designed to provide short-term indoor storage and in-transit protection. In addition to the corrosion protection offered, Axxatec™ 30C may also be used as a light-duty cleaner-rust preventative combination product.
Axxatec™ 48C is a water-based aluminum rust preventative liquid concentrate that also protects ferrous and yellow metals during indoor storage, shipping, and assembly.
Axxatec™ 80C is a water-based liquid concentrate rust preventative designed to provide long-lasting protection during indoor storage, shipping, and assembly.
Axxatec™ DA-23C is a dual-action water-based rust preventative and cleaner with low or no foaming that is designed to provide short-term rust protection and light-duty cleaning.
Axxatec™ DA-24C is a dual-action water-based yellow metal rust preventative and cleaner with low or no foaming that is designed to provide short-term rust protection and light-duty cleaning.
Axxatec™ DA-40AL is a dual-action aluminum rust preventative and cleaner with low foaming that is designed to provide short-term rust protection and light-duty cleaning.
Axxanol™ 33 is a rust preventative oil that forms a light oily film, providing powerful corrosion protection against aggressive environments such as salt air and humidity.
Axxanol™ 33CD is a solvent-based rust preventative that forms a dry-to-touch film, eliminating oily surfaces that attract dust and other contaminants.
Axxanol™ 33CD-HF is a solvent-based high-flash corrosion inhibitor coating that dries-to-touch, eliminating oily surfaces that attract dust and other contaminants.
Axxanol™ 34CD is a solvent-based coating that forms a very light, oily, near dry-to-touch rust preventative film that provides powerful corrosion protection against aggressive environments.
Axxanol™ 34CD-HF is a solvent-based high-flash rust preventative coating that forms a very light, oily film that is near dry-to-touch, providing powerful corrosion protection against aggressive environments, such as salt air and humidity.
Axxanol™ 46-BIO is a sprayable bio-based rust preventative oil that forms a clear, thin, oily, moisture-barrier film that’s also a light lubricant oil.
Axxanol™ 750 is a rust prevention spray containing Vapor Corrosion Inhibitors (VCI). When shipped or stored in enclosed packaging, Axxanol™ 750 forms a clear, thin, oily film that provides a moisture barrier and contact inhibitor with ZERUST® VCI chemistry that migrates to metal surfaces in hard-to-reach voids, crevices, and chambers, providing powerful corrosion protection.
Axxanol™ 750-NV is a rust preventative oil that forms a clear, thin, oily film on the metal surface, providing a moisture barrier and powerful corrosion protection against aggressive environments such as salt air and humidity.
Axxanol™ 758 is a rust prevention oil containing ZERUST® Intelligent Counter-Corrosion Technologies (ICT®), which consists of high-performance non-staining contact inhibitor with dual-action slow and fast release Vapor Corrosion Inhibitors (VCI). When shipped or stored in enclosed packaging, Axxanol™ 758 VCI oil forms a clear, thin, oily film that provides a moisture barrier and contact inhibitor with ZERUST® VCI chemistry that migrates to metal surfaces in hard-to-reach voids, crevices, and chambers providing long-lasting corrosion protection.
Axxanol™ 758-NV is a non-staining rust preventive oil that forms a clear, thin, oily film on the metal surface, providing a moisture barrier and powerful corrosion protection against aggressive environments such as salt air and humidity.
Axxanol™ A35-30 is an oil-based, non-staining rust preventative that forms a light, oily, clear film with excellent water-barrier properties. As a result, it provides powerful corrosion protection against aggressive environments, such as salt air and humidity.
Axxanol™ A35-8030 is a long-term rust preventative oil that forms a light, thin, oily film. As a result, it provides powerful corrosion protection against aggressive environments, such as salt air and humidity. In addition to corrosion protection, it provides lubricating properties that help reduce friction and support smooth assembly and disassembly of metal parts.
Axxanol™ A35CD-32 is a solvent-based, non-staining rust preventative that forms a clear, thin, near dry-to-touch RP film. As a result, it provides powerful corrosion protection against aggressive environments, such as salt air and humidity.

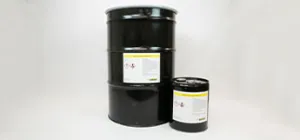

Axxanol™ A35CD-42 is a solvent-based, non-staining long-term rust preventative that forms a clear, thin, near dry-to-touch RP film. As a result, it provides powerful long-term corrosion protection against aggressive environments, such as salt air and humidity.
Axxanol™ A35CD-7 is a high-flash solvent-based rust preventative that forms a clear, thin, dry-to-touch film. As a result, it eliminates oily surfaces that attract dust and other contaminants.
Axxanol™ Spray-G is a sprayable rust preventative grease that provides the protection of a grease in the convenience of a sprayable form. It’s designed to protect metal parts, equipment, and assemblies during long-term indoor and outdoor storage and challenging overseas shipping applications where a removable coating is essential.
Axxanol™ Z-Maxx Anti-Corrosion Grease Series consists of two products, Axxanol™ Z-Maxx and Z-Maxx LV. Z-Maxx is a thick NLGI 2 grease and is also offered as a lower viscosity (LV) NLGI 0 grease that is designed for spreadability and light lubrication properties.
