ZERUST® Identifies Corrosion-Causing Contaminants in Final Wash Process

  • Inventory Storage
  • Land Shipment
  • Work In Progress

Who?

Large automotive transmission manufacturer

What?

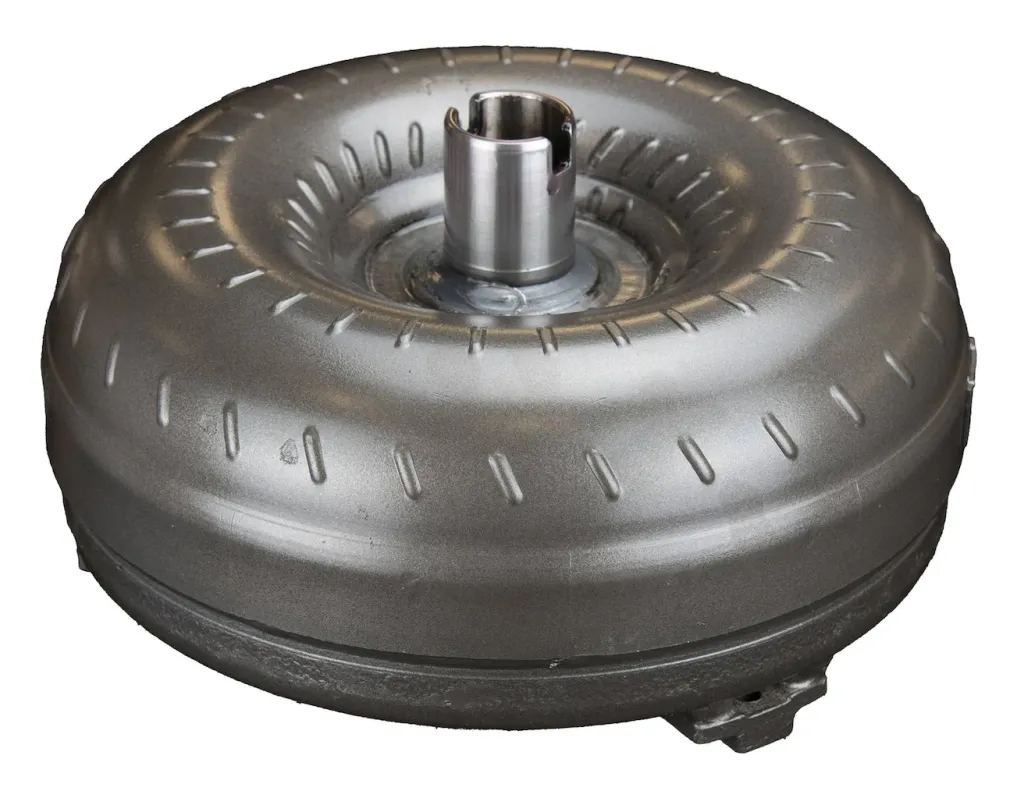

Protection of torque converters during storage and shipping

Why?

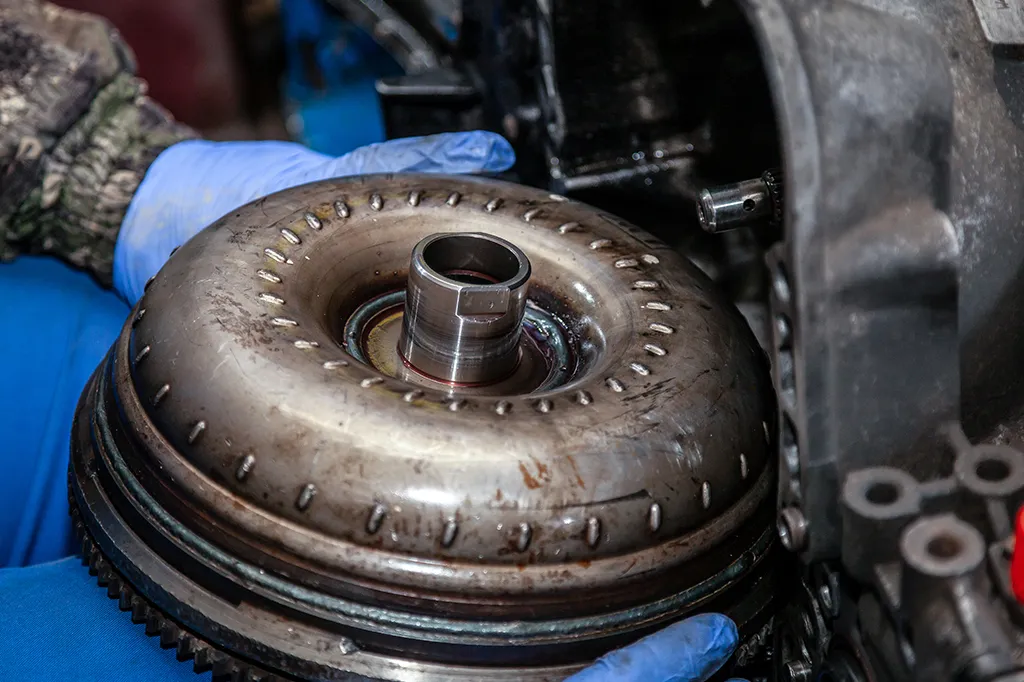

Torque converters were arriving at the end-user’s facility corroded

How?

ZERUST® identified corrosion-causing contaminants in the final wash process, resulting in the parts corroding during storage and shipping. ZERUST® formulated an AxxaWash™ product to neutralize the contaminants and used Axxanol™ 750 to coat the torque converters for further corrosion protection

corrosion-causing contaminants
corrosion-causing contaminants
corrosion-causing contaminants
corrosion-causing contaminants

Problem

A large automotive transmission manufacturer located in the Midwest was experiencing rust and corrosion on torque converter during the storage and shipment to their end-user. They contacted ZERUST® as they needed a corrosion control company to visit their facility and identify the reason for their parts corroding during the storage and shipment.

Solution

ZERUST® Technical Service team visited the customer’s facility to deploy Z-CIS® plant process mapping, collect fluid samples, and complete a part surface analysis. After visiting the customer’s facility, the collected samples were sent to ZERUST’s Laboratory in Circle Pines, MN, for analysis. The laboratory found that the final wash fluids were contaminated with salts and bacteria. When left on the metal surface, these corrosion-causing contaminants increase the risk of rust and corrosion on those parts.

ZERUST® Research and Development team formulated a specific AxxaWash™ chemical product comprised of a new wash chemistry to neutralize the salt contamination in the final wash process. ZERUST® Technical Service also recommended that the customer change their final rust prevention coating to ZERUST® Axxanol™ 750 VCI, providing comprehensive protection by combining a moisture barrier and contact inhibitor film coating with ZERUST® VCI chemistry that migrates to protect voids and crevices. After Axxanol™ 750 has been applied, ZERUST® ICT®427 VCI paper is interleaved between every layer of the parts, and ZERUST® ICT®510-C bag covers the entire pallet keeping the VCI encapsulated for maximum corrosion protection.

ZERUST® Axxanol™ 750 protects torque converters from rust & corrosion
For years
when packaged in VCI packaging


ZERUST® AxxaWash™ neutralizes
Salt Contamination


Customer Satisfaction
100%

Results

After implementing the AxxaWash™ and Axxanol™ 750, the torque converters arrived at the end-users facility without any rust or corrosion. Contact your ZERUST® Representative for a comprehensive corrosion management solution most effective for your metal assets.

The customer was happy with the results as they were able to save significant money, as they no longer had to credit the end-user for rusted parts that needed to be scrapped.
Related Products
Axxanol 750 Pail and Drum

Axxanol™ 750 is a rust prevention spray containing Vapor Corrosion Inhibitors (VCI). When shipped or stored in enclosed packaging, Axxanol™ 750 forms a clear, thin, oily film that provides a moisture barrier and contact inhibitor with ZERUST® VCI chemistry that migrates to metal surfaces in hard-to-reach voids, crevices, and chambers,  providing powerful corrosion protection.

Engine components protected by ZERUST VCI sheeting in dunnage

ICT®510-C Ferrous VCI Film provides cost-effective and targeted protection against rust damage for ferrous metals, such as steel, iron, and cast iron in shipping, storage, and work-in-progress.

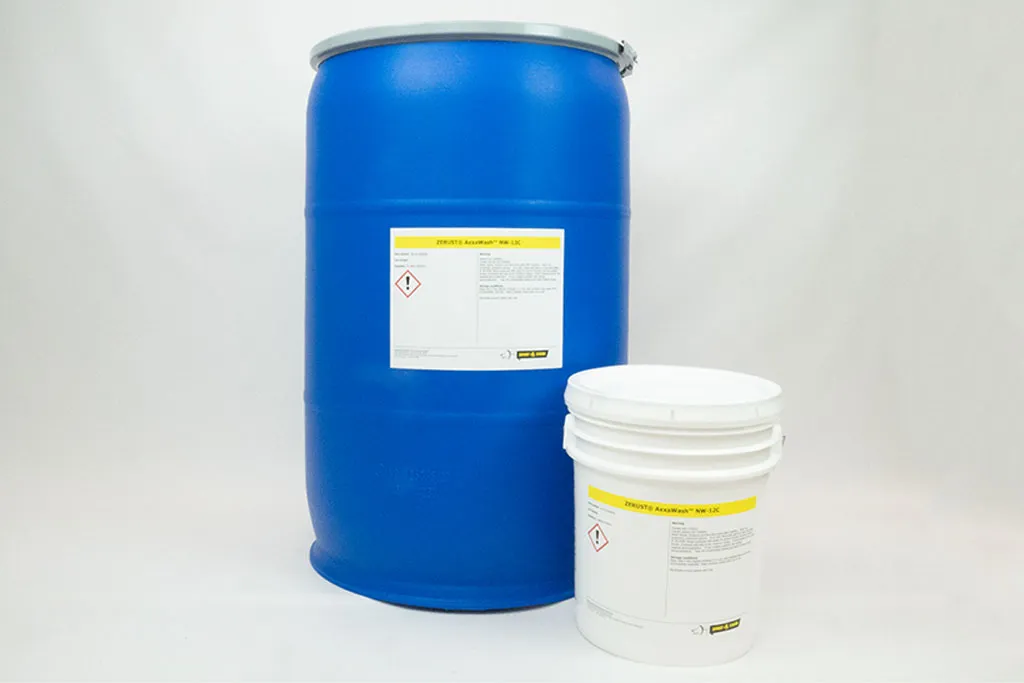

AxxaWash NW-10C Pail and Drum
