Zerust® VCI Packets Preserve the Internal Surfaces of Fuel Tank Systems During Shipping and Storage

  • Export Shipment
  • Inventory Storage
  • Land Shipment
  • Long Term Storage

Who?

World’s largest construction equipment manufacturer

What?

Zerust® ActivPak® protects the internal surfaces of a closed (sealed) fuel tank system from rust and corrosion during storage and shipping

Why?

The customer requested Zerust® put together a corrosion protection system to preserve the internal surfaces of the fuel tank

How?

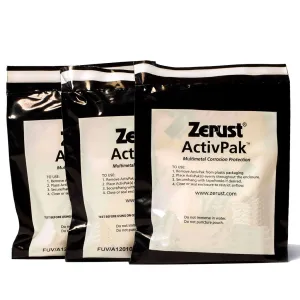

Zerust® developed an ActivPak®-35 packet container that fits the service points to allow adequate dispersion of Vapor Corrosion Inhibitors (VCI) into the vapor space

VCI Packet
VCI Packets
VCI Packets
VCI Packet
automotive corrosion protection

Problem

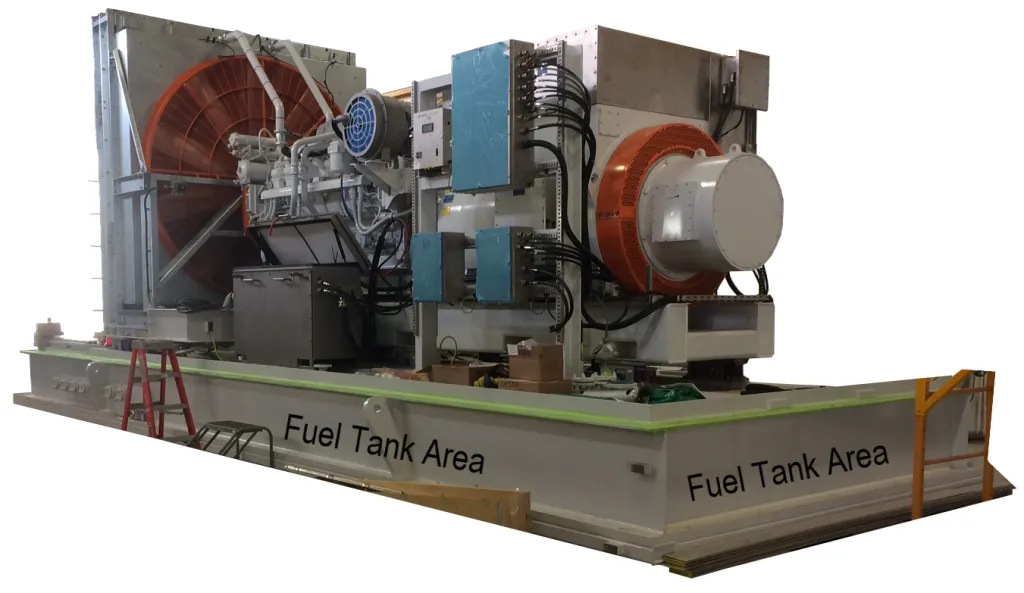

The world’s largest construction equipment manufacturer had a facility that fabricates and assembles power systems on skids for the Oil & Gas industry. The equipment manufacturer was in need of internal corrosion prevention of the fuel tank for the power system. The 1,650-gallon fuel tank was fabricated into the base of the skid assembly, using carbon steel alloys. They previously coated the interior walls of the baffled fuel tank system with a mixture of a Vapor Corrosion Inhibitor (VCI) additive and diesel. The coating was accomplished by rotating the massive skid’s base 360° on the horizontal axis. A uniform coating of the diesel/VCI mixture was completed after several rotations. The engineer wanted a solution that’s more efficient with regard to both labor and resources, to apply a VCI remedy to the internal surfaces of the fuel tank.

Solution

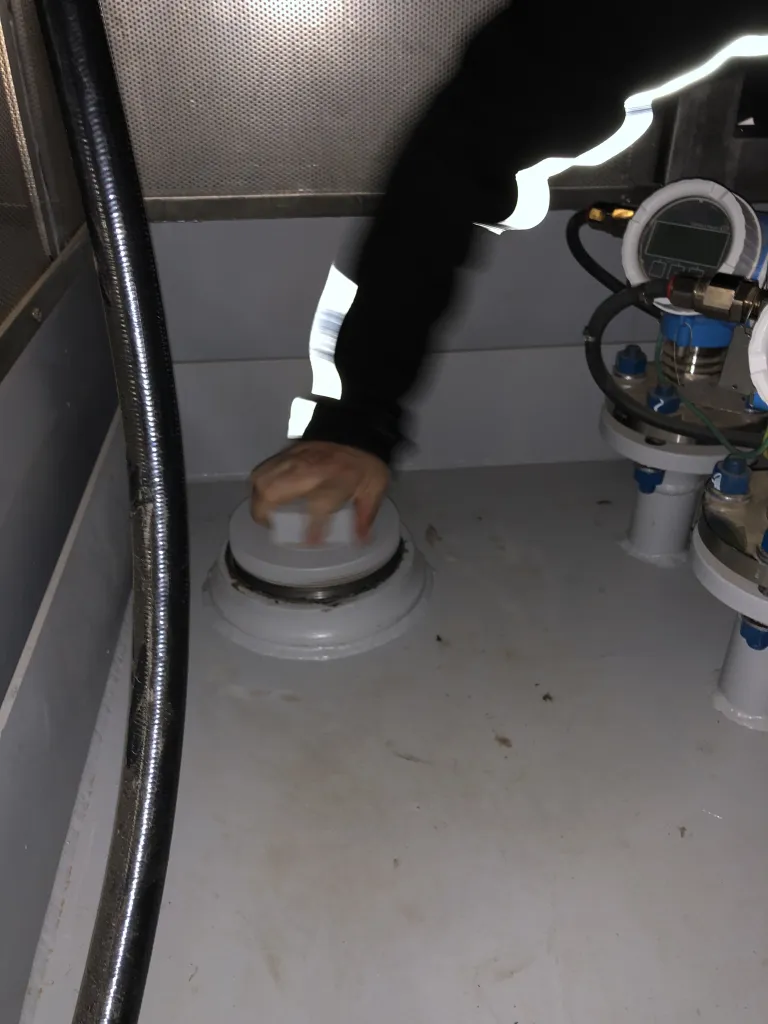

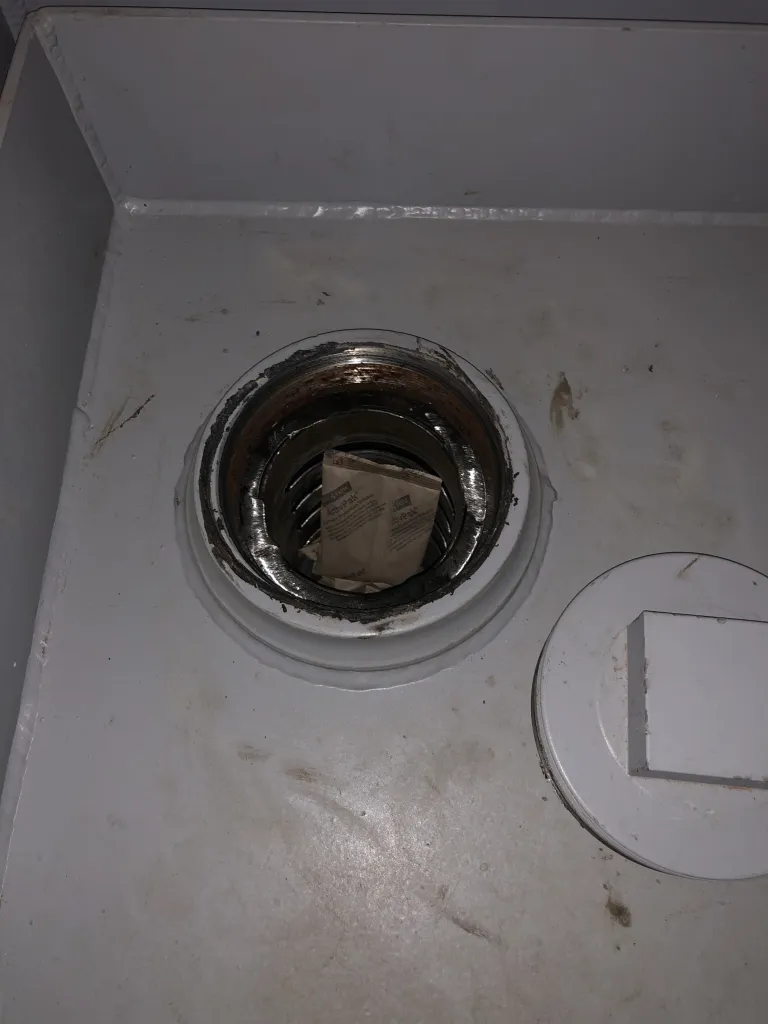

The manufacturer required 1 year of corrosion prevention in a closed (sealed) fuel tank system. Zerust® initially discussed fogging a mixture of Axxanol™ 710C and diesel, after rinsing the system with AxxaVis™ HST-10 which thoroughly cleans the organic soils from all metal interior surfaces. This approach seemed plausible, but left concerns for moisture entrapment of the HST-10 in the baffled areas and Axxanol™ 710C had yet to be vetted as a compatible mixture with diesel. The discussion turned to the use of a VCI powder alternative, but consideration had to be given to both the deployment and removal of the powder. Zerust® looked to ActivPak®-35 VCI diffuser packets as a product that would fill the entire vapor space, given an adequate number of packets could be inserted into the fuel tank. Retrieval of the packets was a concern, as failing to remove an individual packet could result in a fuel blockage scenario. There were a limited number of ingress points to insert the ActivPak®-35 packets and the opening size was close to 8”. Zerust® developed a ActivPak®-35  VCI packet container that would fit down the (8) service points and was sealed with a threaded steel cap. A flanged lip was welded to the rim of the fabricated container, suspending it in the steel-capped area. The body of the steel was slotted with multiple vents, to allow adequate dispersion of the Zerust® ActivPak®-35 packet VCI vapors into the vapor space.

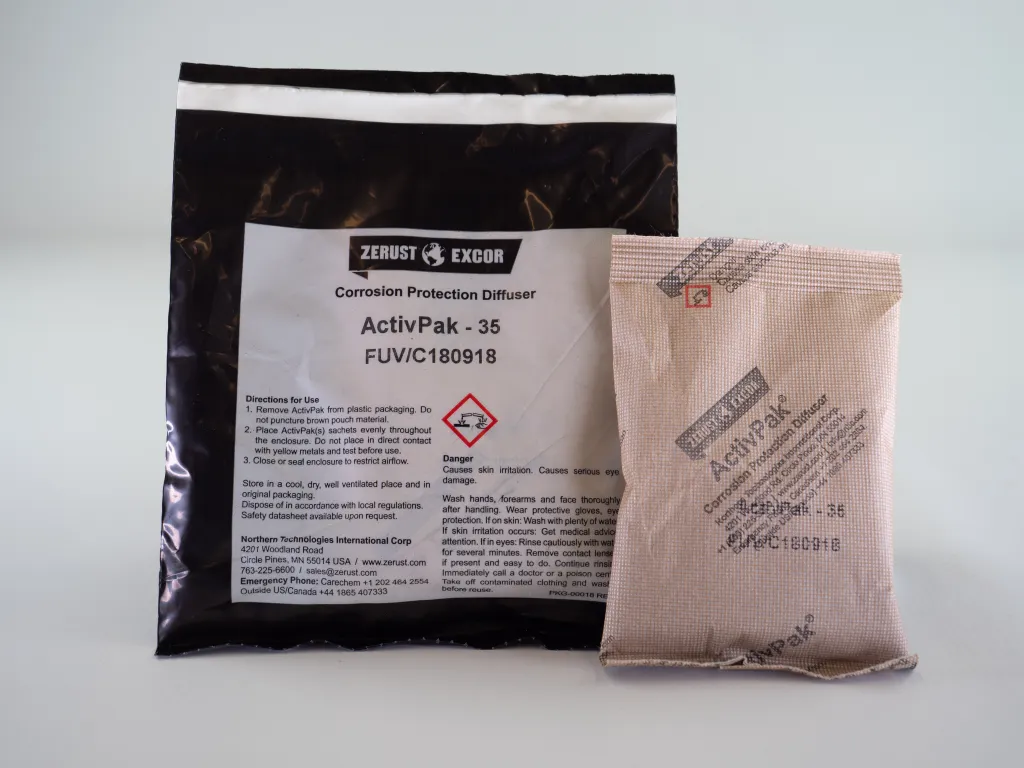

Zerust® ActivPak®-35 provides corrosion protection
For up to 2 years in normal environments


Zerust® ActivPak®-35 provides corrosion protection
For up to 4 months in aggressive environments


Customer Satisfaction
100%

Results

The customer has been extremely happy with their corrosion free results and now rely on Zerust® for all their storage and shipping VCI needs. Contact a Zerust® Representative for a comprehensive corrosion management solution most effective for your metal assets.

VCI sachet

Zerust® ActivPak® provided the customer savings in product and labor costs, while providing corrosion-free results.
Related Products
VCI sachet

Zerust® ActivPak® packets are easy-to-use diffusers that provide targeted corrosion protection. They work in minutes to prevent flash corrosion on bare metal surfaces in an enclosed space.

flash corrosion inhibitor VCI emitter

Zerust® ActivPak®(LS) VCI packets are easy-to-use diffusers that provide targeted corrosion protection. They work in minutes to prevent flash corrosion on bare metal surfaces in an enclosed space.

VCI Oil Additive

Use Zerust® Axxanol™ 710C  to protect engines, hydraulic systems and gearboxes against corrosion during lay-up, shipping or other storage applications. Axxanol™ 710C is a VCI oil additive that provides thorough protection through Zerust® Contact Inhibitors and VCI (Volatile Corrosion Inhibitor) chemistry that migrates to protect hard-to-reach internal surfaces of engines, gearboxes and hydraulic systems such as crevices, slots, oil holes, etc for up to 5 years in hermetically sealed systems.

hydrostatic testing

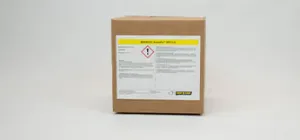

AxxaVis™ HST-10 powder additive treats water used for hydrostatic testing of pressure vessels and voids. It prevents corrosion by reducing hardness and deactivating ionic contaminants such as chlorides found in municipal water sources that cause rust and hard water deposits on metals.
