ZERUST® ActivDri™ CAP-50A Capsule

The ZERUST® ActivDri™ CAP-50A Capsule is a dual-action moisture control product designed for enclosed industrial and electrical applications. It integrates ZERUST® Intelligent Counter-Corrosion Technologies (ICT®), delivering both fast- and slow-acting Vapor Corrosion Inhibitors (VCIs) that protect metal surfaces from corrosion caused by humidity and environmental contaminants.

The ActivDri™ CAP-50A provides protection for multimetal systems, including carbon steel, silicon steel, stainless steel, cast iron, and aluminum. It is also compatible with yellow metals and silver, as validated by independent lab testing per IEC 60068-2-60 Method 4.

Once placed inside a sealed enclosure, the capsule releases invisible, odorless, and non-toxic VCIs. These molecules settle on exposed metal surfaces, forming a protective barrier that prevents corrosion. Upon opening the enclosure, the vapors dissipate, allowing immediate processing such as painting or welding.

A single ActivDri™ CAP-50A Capsule protects up to 35 ft³ (1.0 m³) of enclosed space for up to 1 year^‡ under normal environmental conditions (i.e., SO₂ levels below 0.2 ppm).

For optimal performance, position the capsule in one of the following ways:

• Center: Ideal for even distribution.
• Corners: Use diagonally opposite corners for deep or large enclosures.
• Sides: Suitable for general use.
• Dual Placement: For long boxes or divided spaces, place a capsule at each end.

Always restrict airflow to the enclosure to maintain the protective vapor concentration.

Yes, but it is recommended to place the capsule near the airflow source and an additional capsule near the sensitive metal surface for added protection.

Store unused capsules in their original packaging, sealed in the inner plastic bag, in a cool, dry place away from sunlight. Ideal storage conditions are below 85°F (29°C) and 50% relative humidity. Under these conditions, the shelf life is up to 2 years from the shipment date.

Yes. The capsule is classified as an “article” under UN GHS, US OSHA HazCom, and CA WHMIS, meaning it does not pose a health risk under normal use. However, users with sensitivity to smells may detect a faint ammonia odor.

The outer FSC-certified cardboard box is recyclable after removing the internal non-woven sachet. The sachet should be disposed of as general solid waste. Follow local regulations for disposal and inform your waste hauler if disposing of large quantities of unused capsules.

No. The ActivDri™ CAP-50A Capsule should not be used in environments where it may be submerged in water.

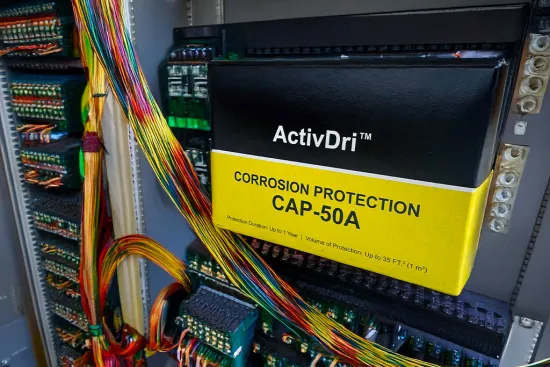

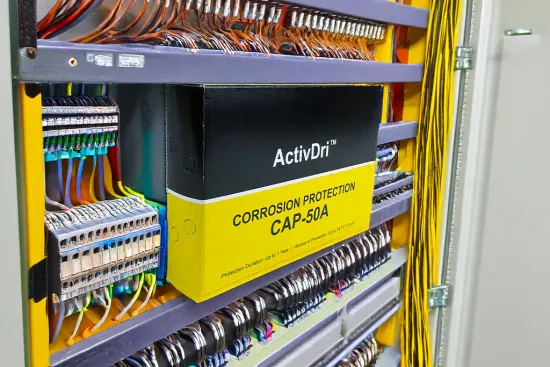

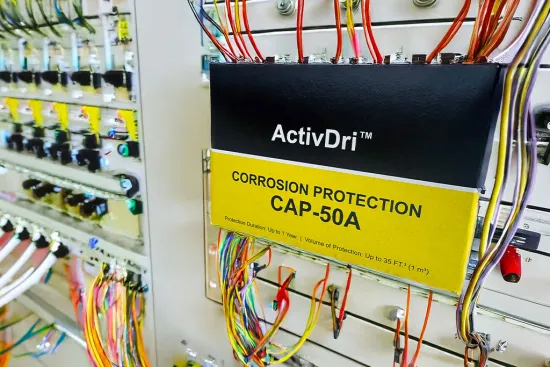

Yes, ActivDri™ CAP-50A Capsule is designed for electrical enclosures. However, note that VCI vapors can interfere with humidity readings, so data loggers may not provide accurate results inside the enclosure.

If stored under ideal conditions, sealed in original packaging, below 85°F (29°C), and 50% relative humidity, the capsules may retain functionality for up to 2 years from the shipment date.

Yes. The ActivDri™ CAP-50A Capsule can be effectively used in combination with other ZERUST® VCI products, such as VCI poly films, emitters, and rust preventative liquids or coatings. Integrated corrosion management solutions may be especially beneficial in harsh or variable environments.

Yes. ActivDri™ CAP-50A Capsules are non-toxic and classified as articles under UN GHS, US OSHA HazCom, and CA WHMIS regulations. While the capsules emit a mild ammonia-like odor upon opening the container, especially noticeable to sensitive individuals, they do not pose a health hazard under intended use conditions. Always keep capsules out of reach of children and avoid disassembly.
